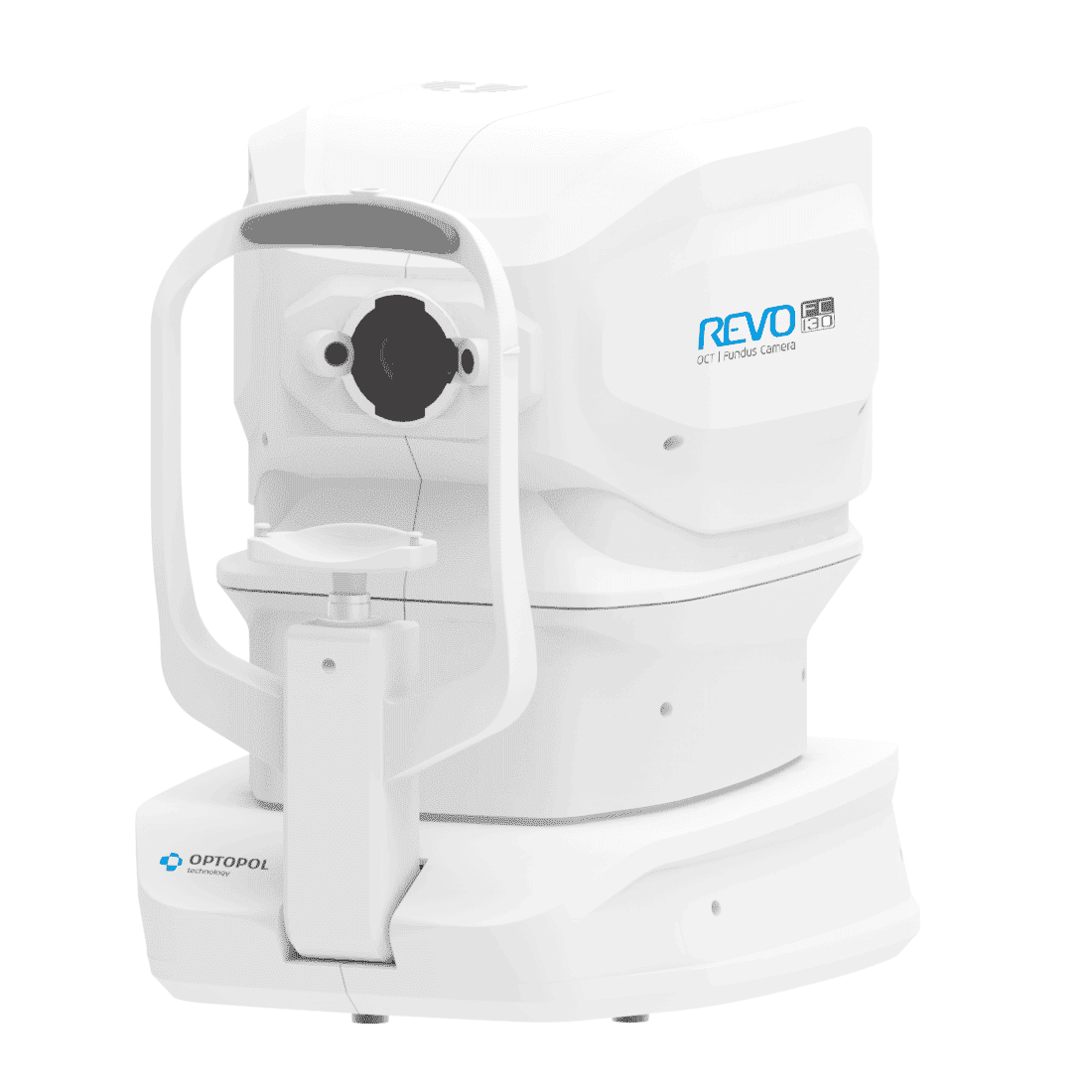

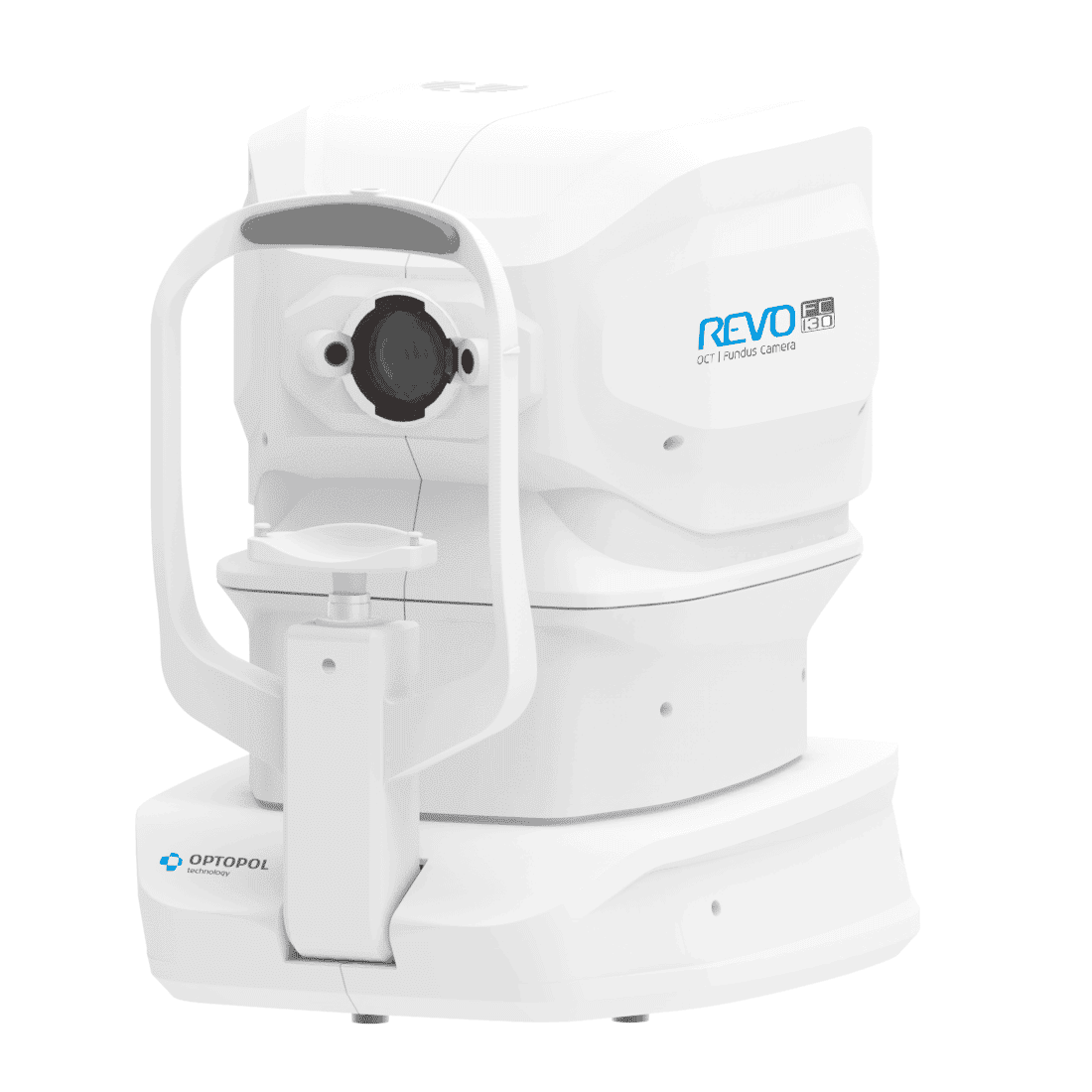

Our supreme experience in Spectral Domain OCT allows us to provide the market with a state of the art instrument which comes with new advanced technologies and remarkable simplicity of operation. The REVO 80 will expand the daily demands of any modern practice.

OCT made simple as never before

Position the patient and press the START button to acquire examinations of both eyes. The Revo 80, guides the patient through the process with vocal messages to increase comfort and reduce patient chair time.

New OCT standard – All functionality In One device.

Once again REVO goes beyond the limits of standard OCT. With its new software, the device provides a full functionality from the retina to the cornea to combine the potential of several devices. With REVO you can measure, quantify, calculate and track changes from the cornea to the retina over time with just one OCT device.


A perfect fit for every practice.

Small system footprint, various operator and patient positions and connection by a single cable allows the installation of REVO 80 into the smallest of examination room spaces. With its variety of examination and analysis tools, the REVO can easily function as a screening or advanced diagnostic device.

High quality of OCT image

The noise reduction technology provides the finest details proven to be important for early disease detection.

Se specifikationer

Hent Brochure


FUNDUS CAMERAType Non-mydriatic fundus camera

Photography type Color

Angle of view 45° ± 5% or less

Min. pupil size for fundus  3.3 mm or more

Camera 12.3 Megapixel CCD camera

Camera modes PhotographyFundus (Retina, Central, Disc, Manual fixation), Anterior photo,Flash adjustment, Gain, ExposureAuto, ManualIntensity levelsHigh, Normal, Low



Spectral Domain OCT

Light Source SLED, Wavelength 850 nm

Bandwidth 50 nm half bandwidth

Scanning speed 130 000 measurements per second

Axial resolution 2.8 μm digital, 6 μm in tissue

Transverse Resolution 12 μm, typical 18 μm

Overall scan depth 2.8 mm / ~6 mm in Full Range mode

Min. pupil size for OCT 2.4 mm

Focus adjustment range -25 D to +25 D

Scan range Posterior 5 mm to 15 mm, Angio 3 mm to 12 mm, Anterior 3 mm to 18 mm

Scan types 3D, Angio*, Full Range Radial, Full Range B-scan, Radial (HD), B-scan (HD), Raster (HD), Cross (HD), TOPO, AL

Fundus alignment Live Fundus Reconstruction

Alignment method Fully automatic, Automatic, Manual

Fundus Tracking Accutrack – active real time , iTracking

Retina analysis Retina thickness, Inner Retinal thickness, Outer Retinal thickness, RNFL+GCL+IPL thickness, GCL+IPL thickness, RNFL thickness, RPE deformation, MZ/EZ-RPE thickness

Angiography OCT
an optional software module to purchase Vitreous, Retina, Choroid, Superfi cial Plexus, RPCP, Deep Plexus, Outer Retina, Choriocapilaries, Depth Coded, SVC, DVC, ICP, DCP, Custom, Enface, FAZ, VFA, NFA, Quantifi cation: Vessel Area Density, Skeleton Area Density, Thickness map

Glaucoma analysis RNFL, ONH morphology, DDLS, OU and Hemisphere asymmetry, Ganglion analysis as RNFL+GCL+IP and GCL+IPL,
Structure + Function

Angiography mosaic Acquistion method: Auto, Manual
Mosaic modes: 10 x 6 mm, Manual up to 12 images

Biometry OCT
an optional software module to purchaseAL, CCT, ACD, LT, P, WTW
IOL Formulas: Hoffer Q, Holladay I, Haigis, Theoretical T, Regression II

Corneal Topography Map
an optional software module to purchaseAxial [Anterior, Posterior], Refractive Power [Kerato, Anterior, Posterior, Total], Net Map, Axial True Net, Equivalent Keratometer, Elevation [Anterior, Posterior], Height, KPI (Keratoconus Prediction Index)

No adapter required even for wide scans e.g. Angle to AngleAnterior Chamber Radial, Anterior Chamber B-scan, Pachymetry, Epithelium map, Stroma map, Angle Assessment, AIOP, AOD 500/750, TISA 500/750, Angle to Angle view, Wide Angle, Wide Cornea

Connectivity DICOM Storage SCU, DICOM MWL SCU, CMDL, Networking

Fixation target OLED display (The target shape and position can be changed), External fixation arm

Dimensions (LxWxH) / Weight 479 × 367 × 493 mm / 30 kg

Power supply / consumption100-240 V, 50/60 Hz / 90-110 VA
