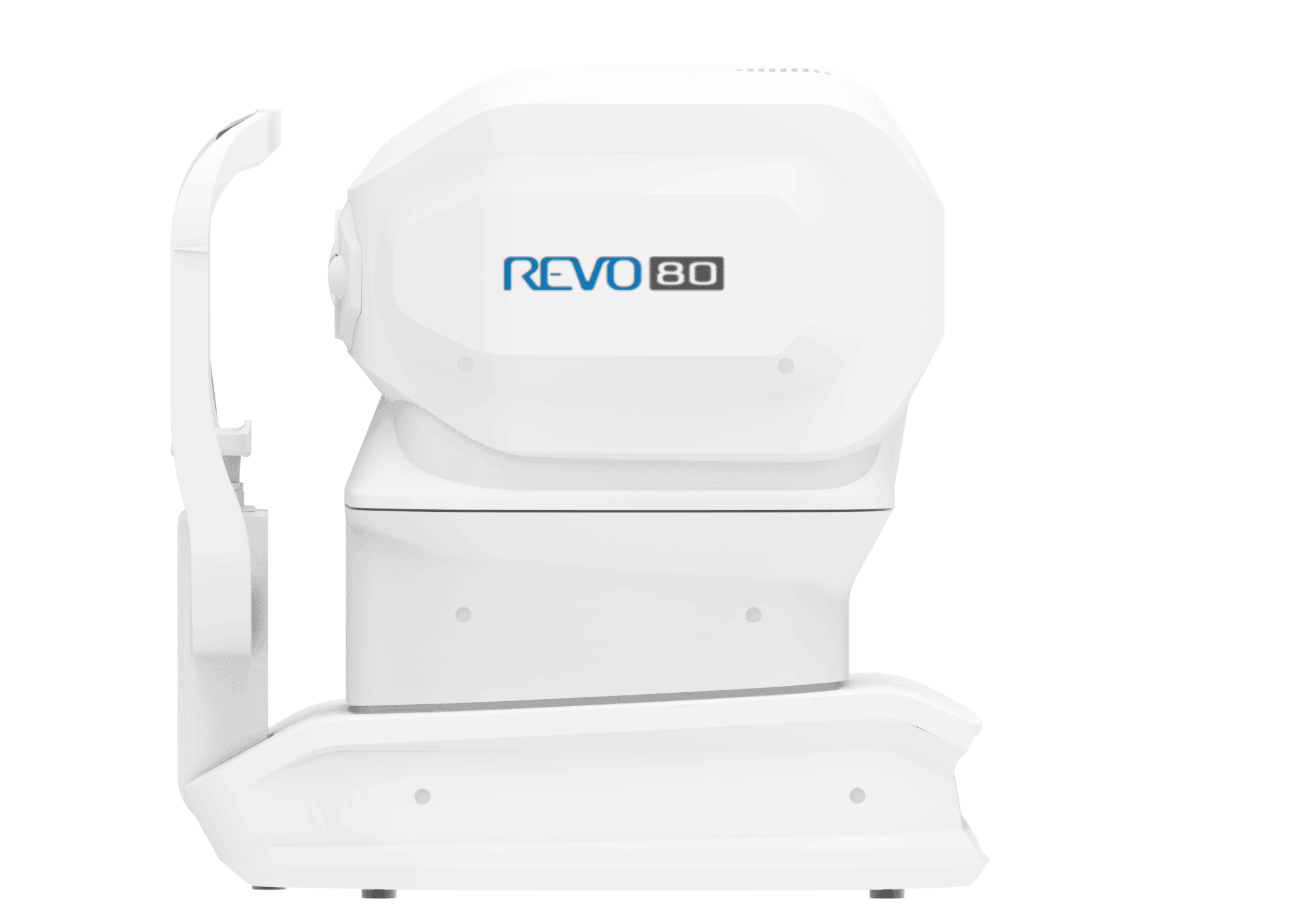

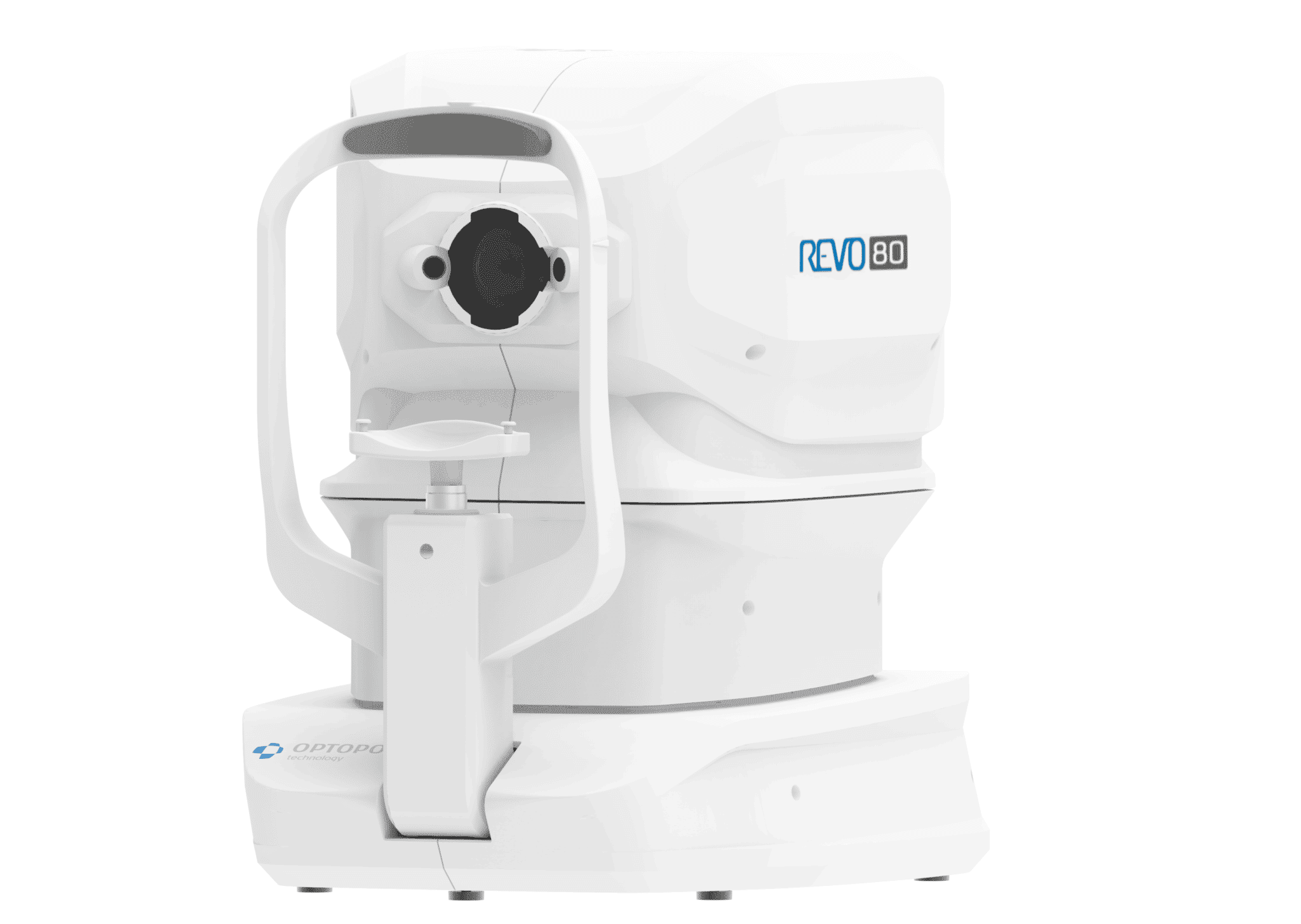

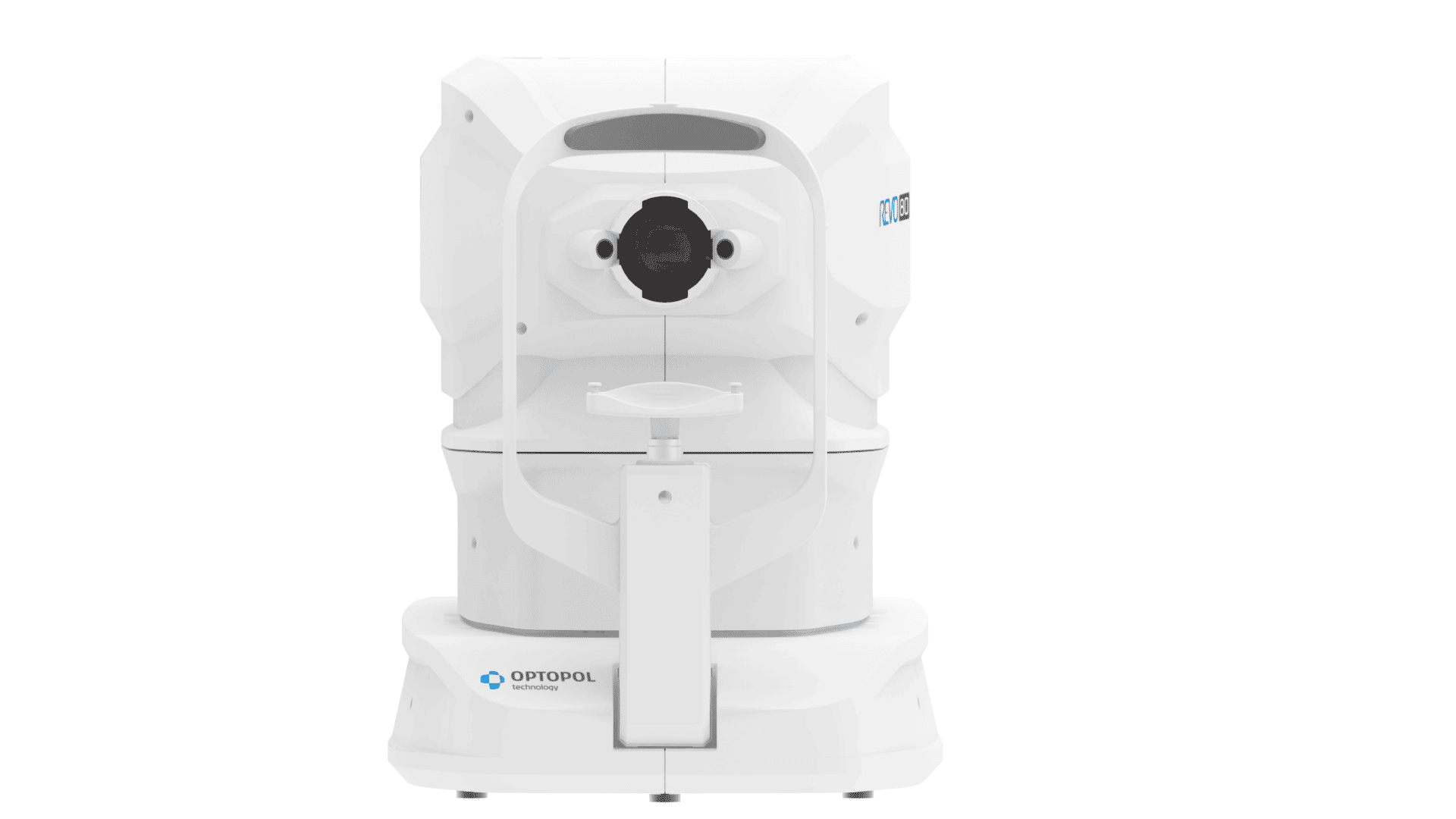

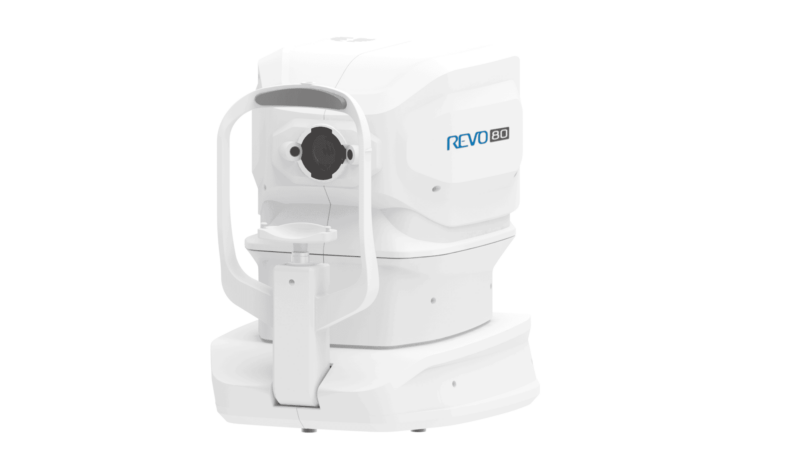

REVO 80

Kategori



OCT made simple as never before

Position the patient and press the START button to acquire examinations of both eyes. The Revo 80, guides the patient through the process with vocal messages to increase comfort and reduce patient chair time.

Our supreme experience in Spectral Domain OCT allows us to provide the market with a state of the art instrument which comes with new advanced technologies and remarkable simplicity of operation. The REVO 80 will expand the daily demands of any modern practice.



A perfect fit for every practice.

Small system footprint, various operator and patient positions and connection by a single cable allows the installation of REVO 80 into the smallest of examination room spaces. With its variety of examination and analysis tools, the REVO can easily function as a screening or advanced diagnostic device.



New OCT standard – All functionality In One device.

Once again REVO goes beyond the limits of standard OCT. With its new software, the device provides a full functionality from the retina to the cornea to combine the potential of several devices. With REVO you can measure, quantify, calculate and track changes from the cornea to the retina over time with just one OCT device.

Beskrivelse

Specifikationer

Technology
Spectral Domain OCT
Scanning speed 80 000 measurements per second
Light Source
SLED, Wavelength 850 nm
Bandwidth
50 nm half bandwidth
Axial resolution
2.6 μm digital, 5 μm in tissue
Transverse Resolution
12 μm, typical 18 μm
Overall scan depth
2.8 mm / ~6 mm in Full Range mode
Scan range
Posterior 5 mm to 15 mm, Angio 3 mm to 6 mm, Anterior 3 mm to 18 mm
Scan program 3D, Angio, Full Range Radial, Full Range B-scan, Radial, B-scan, Raster, Cross, TOPO, AL, ACD
Fundus image
Live Fundus Reconstruction
Alignment method
Fully automatic, Automatic, Manual
Retina analysis
Retina thickness, Inner Retinal thickness, Outer Retinal thickness, RNFL+GCL+IPL thickness, GCL+IPL thickness, RNFL thickness, RPE deformation, MZ/EZ-RPE thickness
Angiography OCT
available only for SOCT Copernicus REVO with 80 000 and 60 000 measurements per secondAngiography mosaic
Vitreous, Retina, Choroid, Superficial Plexus, RPCP, Deep Plexus, Outer Retina, Choriocapilaries, Depth Coded, SVC, DVC, ICP, DCP, Custom, Enface, FAZ, VFA, NFA, Quantification: Vessel Area Density, Skeleton Area Density, Thickness map

Acquistion method: Auto, Manual
Mosaic modes: 10×6 mm, manual up to 12 images

Glaucoma analysis
RNFL, ONH morphology, DDLS, OU and Hemisphere asymmetry, Ganglion analysis as RNFL+GCL+IP and GCL+IPL,
Structure + Functionvia connection with PTS software version 3.4 or higher
Anterior
Pachymetry, Epithelium map, Stroma map, AIOP, Angle Assessment, AOD 500/750, TISA 500/750
Anterior (no lens/adapter required)
Anterior Chamber Radial, Anterior Chamber B-scan, Angle to Angle view
Biometry OCT
an optional software module to purchase
AL, CCT, ACD, LT, P, WTW
IOL Formulas: Hoffer Q, Holladay I, Haigis, Theoretical T, Regression II
Corneal Topography Map
an optional software module to purchase for SOCT Copernicus REVO with 80 000 and 60 000 measurements per second
Axial [Anterior, Posterior], Refractive Power [Kerato, Anterior, Posterior, Total], Net Map, Axial True Net, Equivalent Keratometer, Elevation [Anterior, Posterior], Height, KPI (Keratoconus Prediction Index)
Connectivity DICOM Storage SCU, DICOM MWL SCU, CMDL, Networking
Minimum pupil size
2.4 mm
Focus adjustment range
-25 D to +25 D
Dimensions (W×D×H)
479 x 367 × 493 mm
Weight
29 kg
Fixation target
OLED display (The target shape and position can be changed),
External fixation arm
Power supply
100–240 V, 60/50 Hz
Power consumption
90–110 VA
