OCT Revo
REVO SOCT fra Optopol kommer med nye avancerede teknologier og en bemærkelsesværdig enkel betjening. Den intuitive software giver enheden en fuld funktionalitet fra nethinden til hornhinden for at kombinere potentialet fra flere enheder. Med REVO SOCT kan du måle, kvantificere, beregne og spore ændringer fra cornea til nethinden over tid med kun ét OCT-apparat. DeNoise reduction funktionaliteten giver de fineste detaljer, der har vist sig at være vigtige for tidlig sygdomsopsporing.

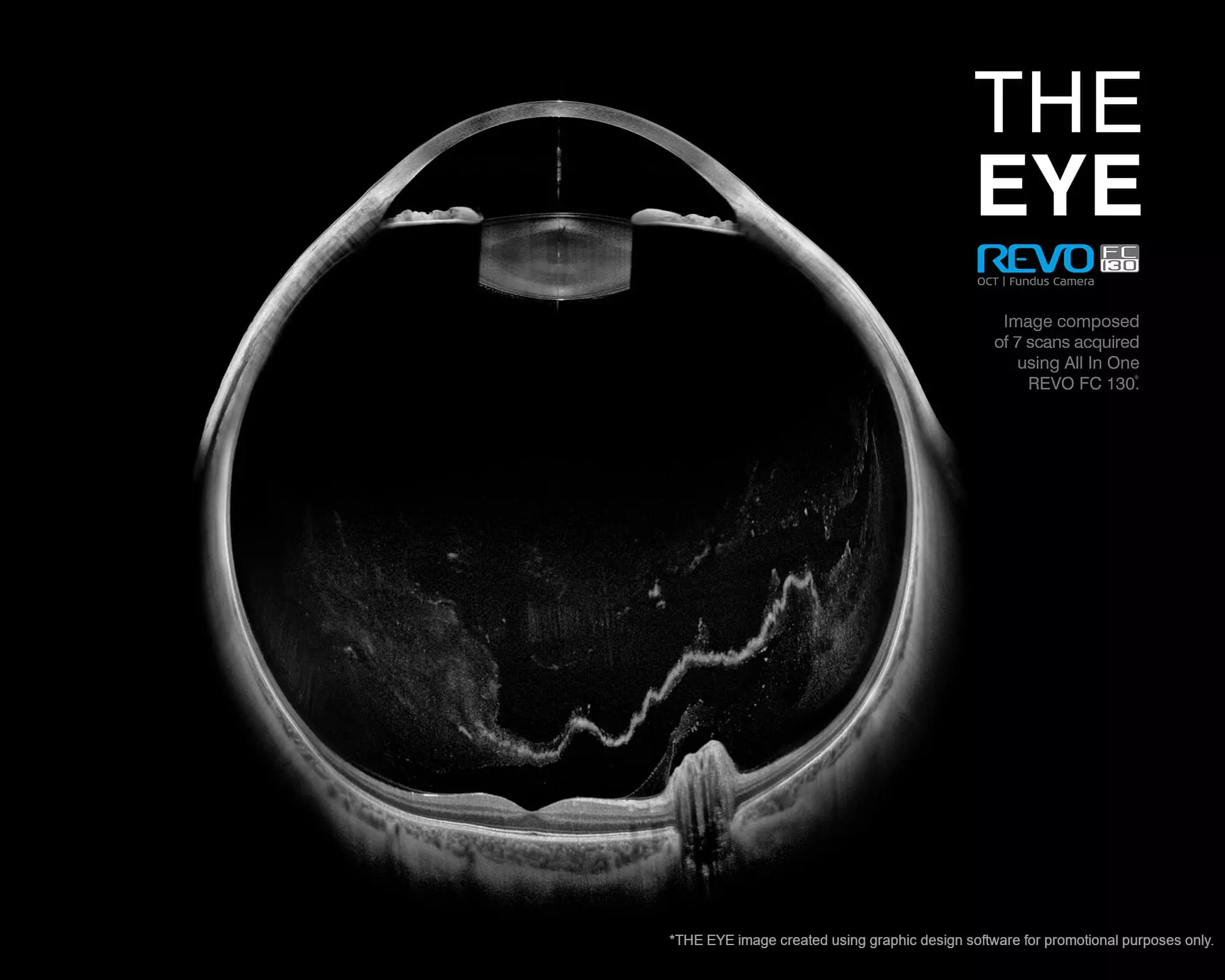

Hurtigt overblik af OCT Revo
OCT-angiografi
Dette modul gør det muligt at visualisere den retinale mikrovaskulatur. Angiografi SOCT er en ikke-invasiv, farvestoffri teknik, der giver et 3D-billede af den retinale blodcirkulation.
RETINA

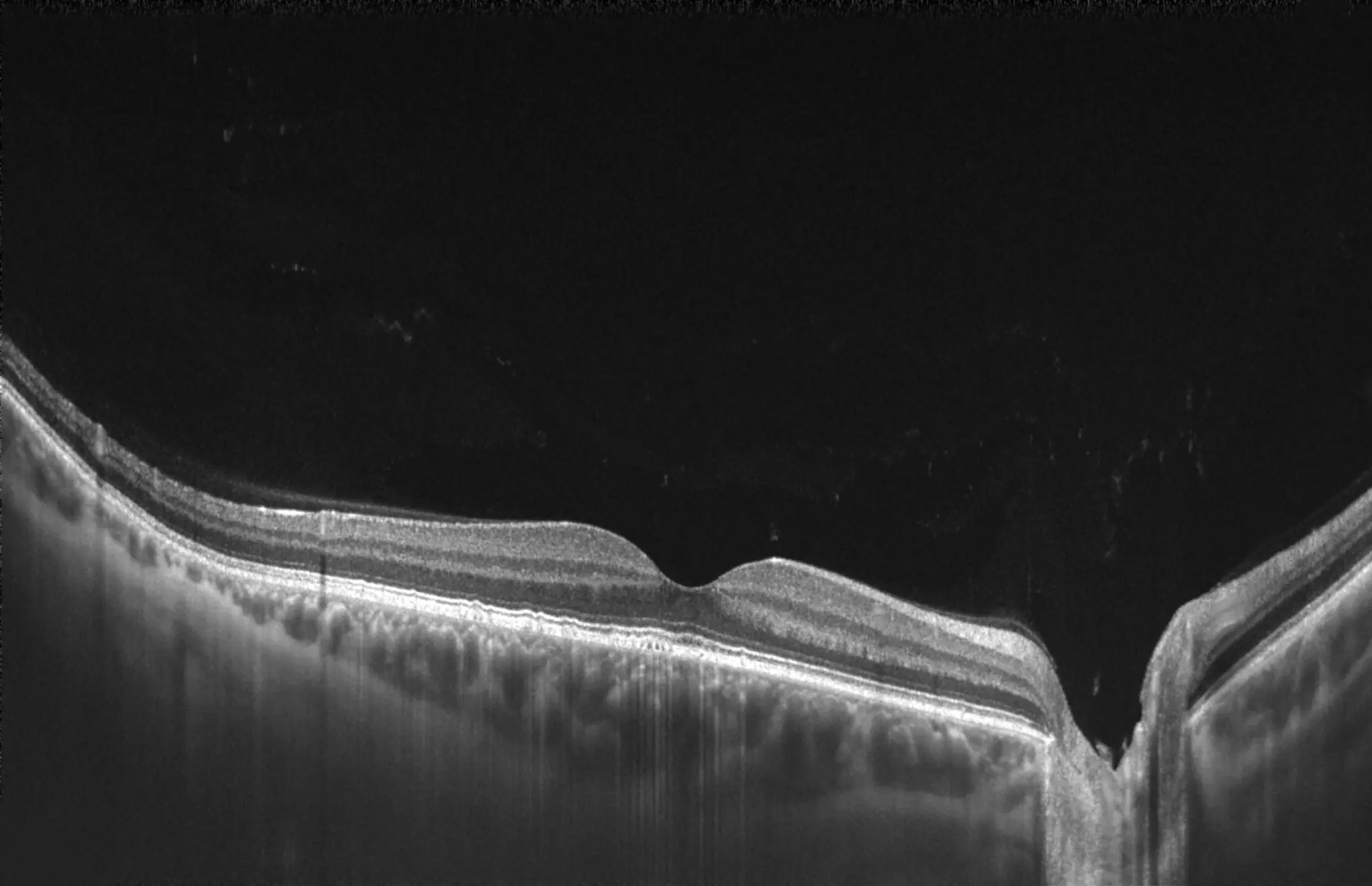

En enkelt 3D-undersøgelse af nethinden er nok til at udføre både nethinde- og glaukomanalyser baseret på nethindescanninger. Softwaren genkender automatisk 8 nethindelag. Dette giver mulighed for en mere præcis diagnose og kortlægning af eventuelle ændringer i patientens nethindetilstand.
GLAUKOM
Omfattende glaukomanalyseværktøjer til kvantificering af optisk nervehoved, nethindenervefiberlag, DDLS, ganglionlag og asymmetri.
ANTERIOR

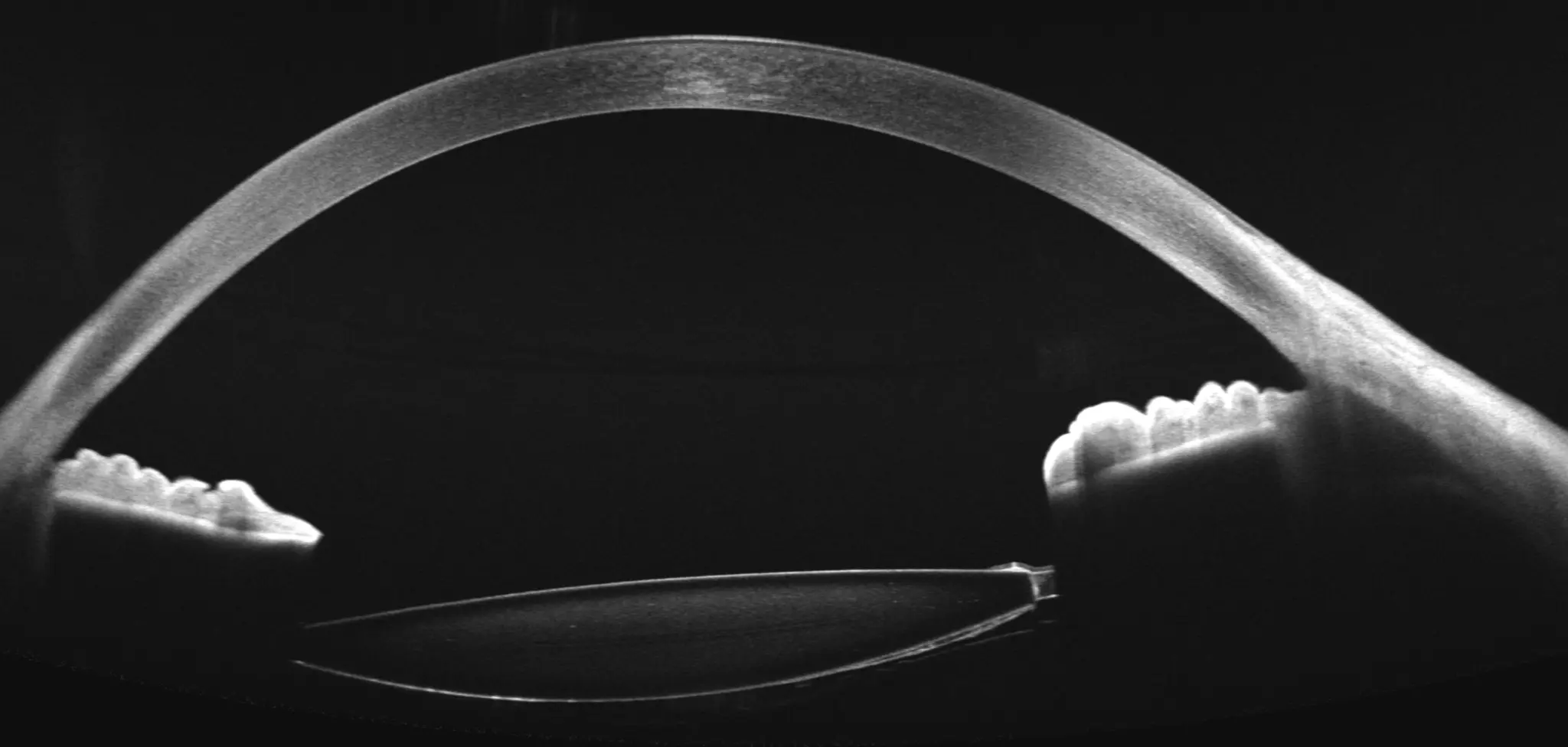

Til standardundersøgelse kræves der ingen ekstra linse. En ekstra adapter, der følger med enheden, gør det muligt at foretage brede scanninger af det forreste segment.
OPFØLGNING
Den høje tæthed af standard 3D-scanning gør det muligt at følge sygdomsforløbet præcist. Operatøren kan analysere ændringer i morfologien, kvantificerede progressionskort eller evaluere progressionstendenserne.
NETVÆRK
En dygtig netværksløsning øger produktiviteten og en forbedret patientoplevelse. Den giver dig mulighed for at se og manipulere flere undersøgelser fra gennemsynsstationer i din praksis. Du hjælper ubesværet med at lette patientuddannelse ved at give dig mulighed for interaktivt at vise undersøgelsesresultater til patienterne. Hver praksis vil have forskellige krav, som vi kan opfylde ved at skræddersy en skræddersyet service. Der er ingen ekstra omkostninger for servermodulet.
Tekniske specifikationer for vores OCT Revo sortiment

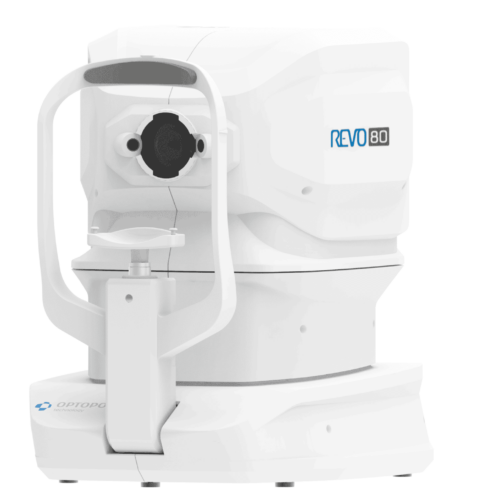

| OCT Revo 60 | OCT Revo 80 | |
| Technology | Spectral Domain OCT | Spectral Domain OCT |
| Scanning speed | 60 000 measurements per second | 80 000 measurements per second |
| Light Source | SLED, Wavelength 850 nm | SLED, Wavelength 850 nm |
| Bandwidth | 50 nm half bandwidth | 50 nm half bandwidth |
| Axial resolution | 2.6 μm digital, 5 μm in tissue | 2.6 μm digital, 5 μm in tissue |
| Transverse Resolution | 12 μm, typical 18 μm | 12 μm, typical 18 μm |
| Overall scan depth | 2.8 mm / ~6 mm in Full Range mode | 2.8 mm / ~6 mm in Full Range mode |
| Scan range | Posterior 5 mm to 15 mm, Angio 3 mm to 6 mm, Anterior 3 mm to 18 mm | Posterior 5 mm to 15 mm, Angio 3 mm to 6 mm, Anterior 3 mm to 18 mm |
| Scan program | 3D, Angio, Full Range Radial, Full Range B-scan, Radial, B-scan, Raster, Cross, TOPO, AL, ACD | 3D, Angio, Full Range Radial, Full Range B-scan, Radial, B-scan, Raster, Cross, TOPO, AL, ACD |
| Fundus image | Live Fundus Reconstruction | Live Fundus Reconstruction |
| Alignment method | Fully automatic, Automatic, Manual | Fully automatic, Automatic, Manual |
| Retina analysis | Retina thickness, Inner Retinal thickness, Outer Retinal thickness, RNFL+GCL+IPL thickness, GCL+IPL thickness, RNFL thickness, RPE deformation, MZ/EZ-RPE thickness | Retina thickness, Inner Retinal thickness, Outer Retinal thickness, RNFL+GCL+IPL thickness, GCL+IPL thickness, RNFL thickness, RPE deformation, MZ/EZ-RPE thickness |
| Angiography OCT available only for SOCT Copernicus REVO with 80 000 and 60 000 measurements per secondAngiography mosaic |
Vitreous, Retina, Choroid, Superficial Plexus, RPCP, Deep Plexus, Outer Retina, Choriocapilaries, Depth Coded, SVC, DVC, ICP, DCP, Custom, Enface, FAZ, VFA, NFA, Quantification: Vessel Area Density, Skeleton Area Density, Thickness map
Acquistion method: Auto, Manual |
Vitreous, Retina, Choroid, Superficial Plexus, RPCP, Deep Plexus, Outer Retina, Choriocapilaries, Depth Coded, SVC, DVC, ICP, DCP, Custom, Enface, FAZ, VFA, NFA, Quantification: Vessel Area Density, Skeleton Area Density, Thickness map
Acquistion method: Auto, Manual |
| Glaucoma analysis | RNFL, ONH morphology, DDLS, OU and Hemisphere asymmetry, Ganglion analysis as RNFL+GCL+IP and GCL+IPL, Structure + Functionvia connection with PTS software version 3.4 or higher |
RNFL, ONH morphology, DDLS, OU and Hemisphere asymmetry, Ganglion analysis as RNFL+GCL+IP and GCL+IPL, Structure + Functionvia connection with PTS software version 3.4 or higher |
| Anterior | Pachymetry, Epithelium map, Stroma map, AIOP, Angle Assessment, AOD 500/750, TISA 500/750 | Pachymetry, Epithelium map, Stroma map, AIOP, Angle Assessment, AOD 500/750, TISA 500/750 |
| Anterior (no lens/adapter required) | Anterior Chamber Radial, Anterior Chamber B-scan, Angle to Angle view | Anterior Chamber Radial, Anterior Chamber B-scan, Angle to Angle view |
| Biometry OCT an optional software module to purchase |
AL, CCT, ACD, LT, P, WTW IOL Formulas: Hoffer Q, Holladay I, Haigis, Theoretical T, Regression II |
AL, CCT, ACD, LT, P, WTW IOL Formulas: Hoffer Q, Holladay I, Haigis, Theoretical T, Regression II |
| Corneal Topography Map an optional software module to purchase for SOCT Copernicus REVO with 80 000 and 60 000 measurements per second |
Axial [Anterior, Posterior], Refractive Power [Kerato, Anterior, Posterior, Total], Net Map, Axial True Net, Equivalent Keratometer, Elevation [Anterior, Posterior], Height, KPI (Keratoconus Prediction Index) | Axial [Anterior, Posterior], Refractive Power [Kerato, Anterior, Posterior, Total], Net Map, Axial True Net, Equivalent Keratometer, Elevation [Anterior, Posterior], Height, KPI (Keratoconus Prediction Index) |
| Connectivity | DICOM Storage SCU, DICOM MWL SCU, CMDL, Networking | DICOM Storage SCU, DICOM MWL SCU, CMDL, Networking |
| Minimum pupil size | 2.4 mm | 2.4 mm |
| Focus adjustment range | -25 D to +25 D | -25 D to +25 D |
| Dimensions (W×D×H) | 479 x 367 × 493 mm | 479 x 367 × 493 mm |
| Weight | 29 kg | 29 kg |
| Fixation target | OLED display (The target shape and position can be changed), External fixation arm |
OLED display (The target shape and position can be changed), External fixation arm |
| Power supply | 100–240 V, 60/50 Hz | 100–240 V, 60/50 Hz |
| Power consumption | 90–110 VA | 90–110 VA |

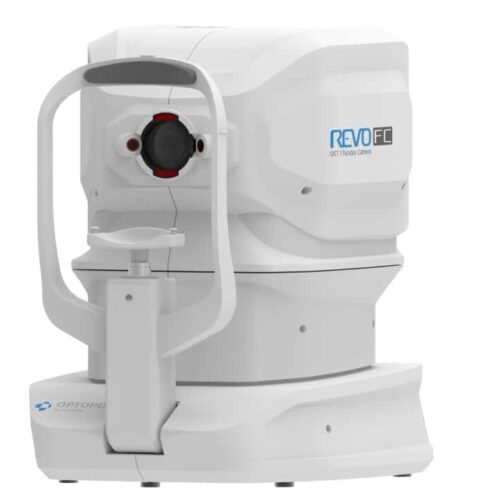

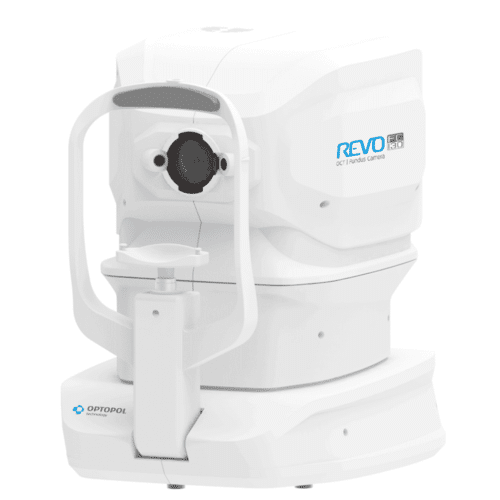

| OCT Revo FC | OCT Revo FC130 | |
| Technology | Spectral Domain OCT | Spectral Domain OCT |
| Light source | SLED 850 Wavelength | SLED 850 Wavelength |
| Bandwidth | 50 nm half bandwidth | 50 nm half bandwidth |
| Scanning speed | 80 000 measurements per second | 130 000 measurements per second |
| Min. pupil size for OCT | 2.4 mm | 2.4 mm |
| Axial resolution | 2.6 µm digital, 5 µm in tissue | 2.8 µm digital, 5 µm in tissue |
| Transverse resolution | 12 µm, typical 18 µm | 12 µm, typical 18 µm |
| Overall scan depth | 2.4 mm / ~5 mm in Full Range mode | 2.8 mm / ~6 mm in Full Range mode |
| Focus adjustment range | -25 D to +25 D | -25 D to +25 D |
| Scan range | Posterior 5 mm to 15 mm, Angio 3 mm to 9 mm, Anterior 3 mm to 16 mm | Posterior 5 mm to 15 mm, Angio 3 mm to 12 mm, Anterior 3 mm to 18 mm |
| Scan types | 3D, Angio, Full Range Radial, Full Range B-scan, Radial (HD), B-scan (HD), Raster (HD), Cross (HD), TOPO , AL, ACD | 3D, Angio, Full Range Radial, Full Range B-scan, Radial (HD), B-scan (HD), Raster (HD), Cross (HD), TOPO, AL |
| Fundus alignment | IR, Live Fundus Reconstruction | Live Fundus Reconstruction |
| Alignment method | Fully automatic, Automatic, Manual | IR, Fully automatic, Automatic, Manual |
| Fundus Tracking | Real time active, iTracking | Accutrack – Active real time, iTracking – Postprocessing tracking |
| Retina analysis | Retina thickness, Inner Retinal thickness, Outer Retinal thickness, RNFL+GCL+IPL thickness, GCL+IPL thickness, RNFL thickness, RPE deformation, MZ/EZ-RPE thickness | Retina thickness, Inner Retinal thickness, Outer Retinal thickness, RNFL+GCL+IPL thickness, GCL+IPL thickness, RNFL thickness, RPE deformation, MZ/EZ-RPE thickness |
| Angiography OCT | Vitreous, Retina, Choroid, Super ficial Plexus, RPCP, Deep Plexus, Outer Retina, Choriocapilaries, Depth Coded, SVC, DVC, ICP, DCP, Custom, Enface, FAZ, VFA, NFA, Quanti cation: Vessel Area Density, Skeleton Area Density, Thickness map | Vitreous, Retina, Choroid, Super ficial Plexus, RPCP, Deep Plexus, Outer Retina, Choriocapilaries, Depth Coded, SVC, DVC, ICP, DCP, Custom, Enface, Quantification: FAZ, VFA, NFA, Vessel Area Density, Skeleton Area Density, Thickness maps |
| Glaucoma analysis | RNFL, ONH morphology, DDLS, OU and Hemisphere asymmetry, Ganglion analysis as RNFL+GCL+IP and GCL+IPL, Structure + Function | RNFL, ONH morphology, DDLS, OU and Hemisphere asymmetry, Ganglion analysis as RNFL+GCL+IP and GCL+IPL, Structure + Function |
| Angiography mosaic | Acquisition method: Auto, Manual. Mosaic modes: 10 mm × 6 mm, Manual up to 12 images | Acquisition method: Auto, Manual. Mosaic modes: 10×10, 10×6, 12×5, 7×7, Manual up to 12 images |
| Biometry OCT IOL Calculator |
AL, CCT, ACD, LT, P, WTW IOL. Formulas: Hoffer Q, Holladay I, Haigis, Theoretical T, Regression II | AL, CCT, ACD, LT, P, WTW IOL. Formulas: Hoffer Q, Holladay I, Haigis, Theoretical T, Regression II |
| Corneal Topography Map | Axial [Anterior, Posterior], Refractive Power [Kerato, Anterior, Posterior, Total], Net Map, Axial True Net, Equivalent Keratometer, Elevation [Anterior, Posterior], Height, KPI (Keratoconus Prediction Index) | Axial [Anterior, Posterior], Refractive Power [Kerato, Anterior, Posterior, Total], Net Map, Axial True Net, Equivalent Keratometer, Elevation [Anterior, Posterior], Height, KPI (Keratoconus Prediction Index) |
| Anterior No lens/adapter required | Anterior Chamber Radial, Anterior Chamber B-scan, Pachymetry, Epithelium map, Stroma map, Angle Assessment, AIOP, AOD 500/750, TISA 500/750, Angle to Angle view | Anterior Chamber Radial, Anterior Chamber B-scan, Pachymetry, Epithelium map, Stroma map, Angle Assessment, AIOP, AOD 500/750, TISA 500/750, Angle to Angle view |
| Connectivity | DICOM Storage SCU, DICOM MWL SCU, CMDL, Networking | DICOM Storage SCU, DICOM MWL SCU, CMDL, Networking |
| Fixation target | OLED display (the target shape and position can be changed), External fixation arm | OLED display (the target shape and position can be changed), External fixation arm |
| Dimensions (L×W×H) / Weight | 479 mm × 367 mm × 493 mm / 30 kg | 479 mm × 367 mm × 493 mm / 30 kg |
| Power supply / consumption | 100 V to 240 V, 50/60 Hz / 90 VA to 110 VA | 100 V to 240 V, 50/60 Hz / 90 VA to 110 VA |
