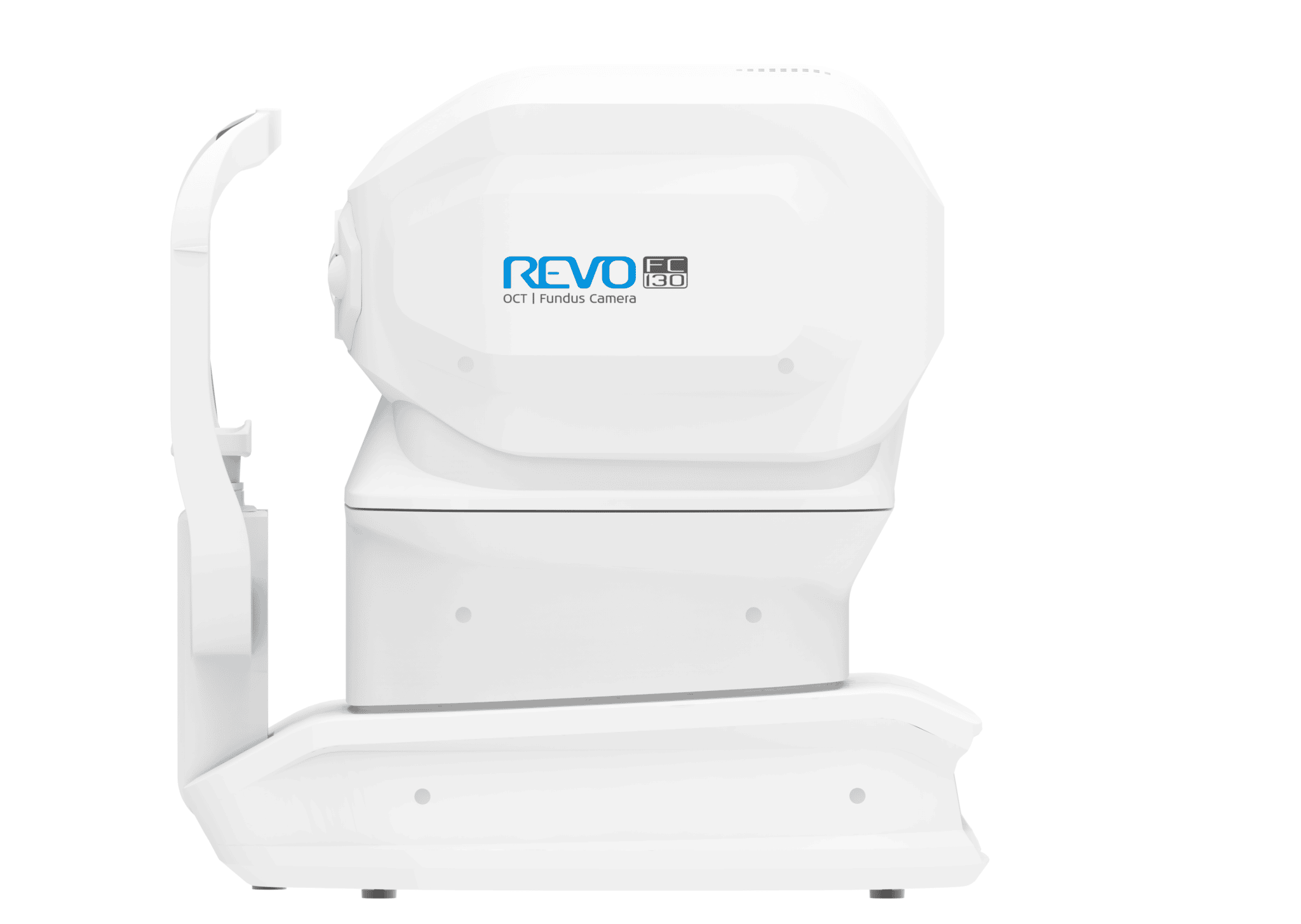

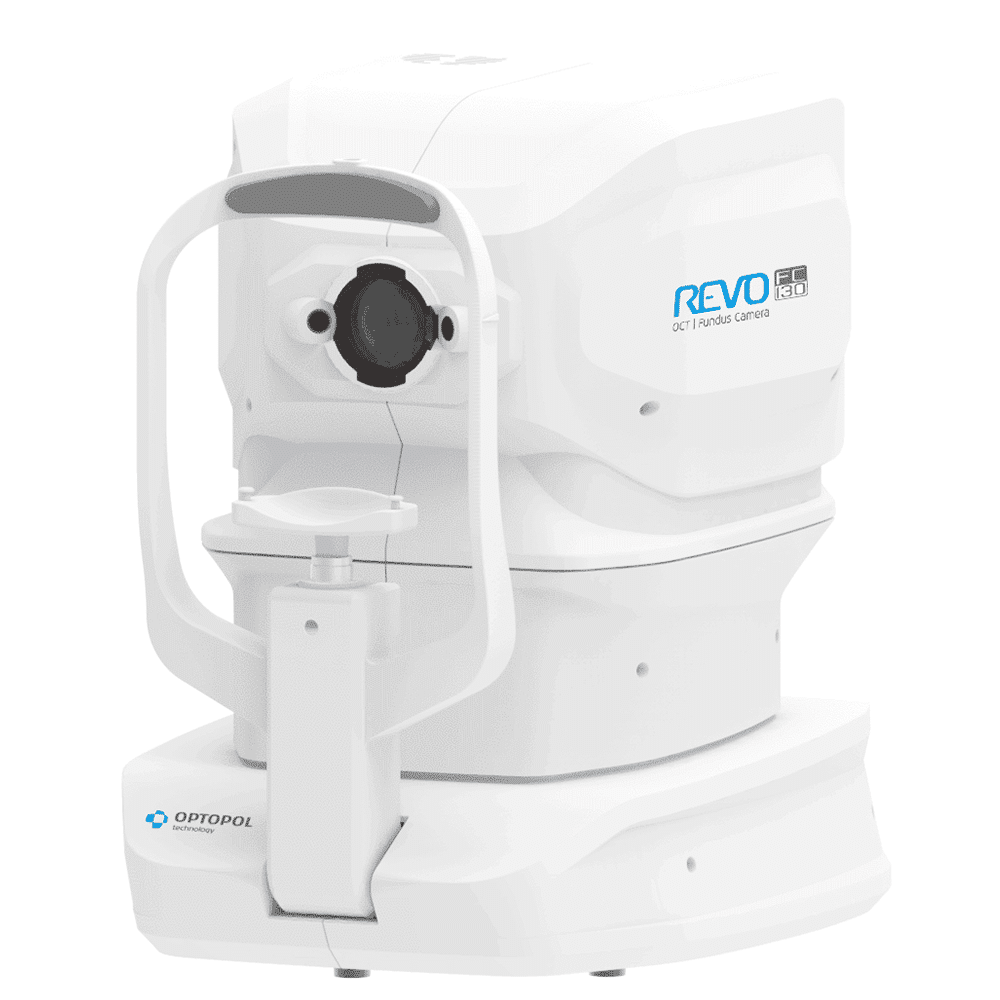

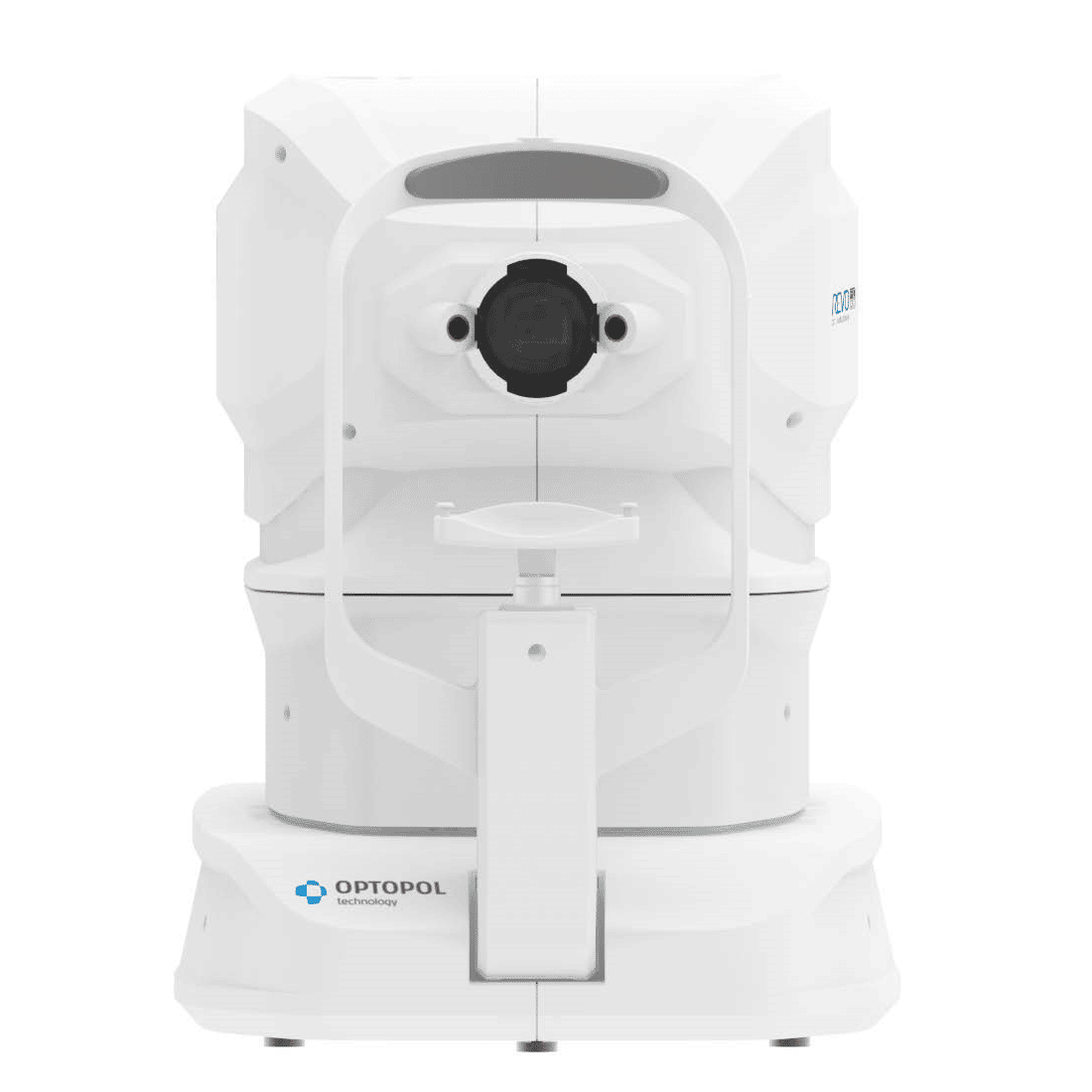

REVO FC 130

Kategori



OCT made simple as never before

The REVO FC 130 is an all-in-one device you can use in
a number of ways, such as a full color Fundus Camera or as
a combo providing simultaneous OCT and fundus images
for high quality OCT imaging, including A-OCT

A perfect fit for every practice

Small system footprint, various operator and patient positions and connection by a single cable allow the installation of REVO FC 130 into the smallest of examination room spaces. With its variety of examination and analysis tools, the REVO can easily function as a screening or an advanced diagnostic device

New OCT standard – all functionality in All in One device

Once again REVO goes beyond the limits of standard OCT.
With its new software, REVO enables full functionality from
the cornea to the retina, combining the potential of several
devices. With just a single OCT device you can measure,
quantify, calculate and track changes from the cornea to the
retina over time.

Beskrivelse

Læs yderligere beskrivelse og specifikationer i denne brochure.



Specifikationer

FUNDUS CAMERAType Non-mydriatic fundus camera

Photography type Color

Angle of view 45° ± 5% or less

Min. pupil size for fundus  3.3 mm or more

Camera 12.3 Megapixel CCD camera

Camera modes PhotographyFundus (Retina, Central, Disc, Manual fixation), Anterior photo,Flash adjustment, Gain, ExposureAuto, ManualIntensity levelsHigh, Normal, Low



OPTICAL COHERENCE TOMOGRAPHY:

Spectral Domain OCT

Light Source SLED, Wavelength 850 nm

Bandwidth 50 nm half bandwidth

Scanning speed 130 000 measurements per second

Axial resolution 2.8 μm digital, 6 μm in tissue

Transverse Resolution 12 μm, typical 18 μm

Overall scan depth 2.8 mm / ~6 mm in Full Range mode

Min. pupil size for OCT 2.4 mm

Focus adjustment range -25 D to +25 D

Scan range Posterior 5 mm to 15 mm, Angio 3 mm to 12 mm, Anterior 3 mm to 18 mm

Scan types 3D, Angio*, Full Range Radial, Full Range B-scan, Radial (HD), B-scan (HD), Raster (HD), Cross (HD), TOPO, AL

Fundus alignment Live Fundus Reconstruction

Alignment method Fully automatic, Automatic, Manual

Fundus Tracking Accutrack – active real time , iTracking

Retina analysis Retina thickness, Inner Retinal thickness, Outer Retinal thickness, RNFL+GCL+IPL thickness, GCL+IPL thickness, RNFL thickness, RPE deformation, MZ/EZ-RPE thickness

Angiography OCT
an optional software module to purchase Vitreous, Retina, Choroid, Superfi cial Plexus, RPCP, Deep Plexus, Outer Retina, Choriocapilaries, Depth Coded, SVC, DVC, ICP, DCP, Custom, Enface, FAZ, VFA, NFA, Quantifi cation: Vessel Area Density, Skeleton Area Density, Thickness map

Glaucoma analysis RNFL, ONH morphology, DDLS, OU and Hemisphere asymmetry, Ganglion analysis as RNFL+GCL+IP and GCL+IPL,
Structure + Function

Angiography mosaic Acquistion method: Auto, Manual
Mosaic modes: 10 x 6 mm, Manual up to 12 images

Biometry OCT
an optional software module to purchaseAL, CCT, ACD, LT, P, WTW
IOL Formulas: Hoffer Q, Holladay I, Haigis, Theoretical T, Regression II

Corneal Topography Map
an optional software module to purchaseAxial [Anterior, Posterior], Refractive Power [Kerato, Anterior, Posterior, Total], Net Map, Axial True Net, Equivalent Keratometer, Elevation [Anterior, Posterior], Height, KPI (Keratoconus Prediction Index)

Anterior
No adapter required even for wide scans e.g. Angle to AngleAnterior Chamber Radial, Anterior Chamber B-scan, Pachymetry, Epithelium map, Stroma map, Angle Assessment, AIOP, AOD 500/750, TISA 500/750, Angle to Angle view, Wide Angle, Wide Cornea

Connectivity DICOM Storage SCU, DICOM MWL SCU, CMDL, Networking

Fixation target OLED display (The target shape and position can be changed), External fixation arm

Dimensions (LxWxH) / Weight 479 × 367 × 493 mm / 30 kg

Power supply / consumption100-240 V, 50/60 Hz / 90-110 VA
